Rotary-head drive 3002

Overview

Output torque 40,000 N·m at ratio 33.8.

Input coupling sleeve with 24 / 32 teeth; second-stage sun gear 20 teeth, spline Z40.

Built to order. Lead time is confirmed with each quotation.

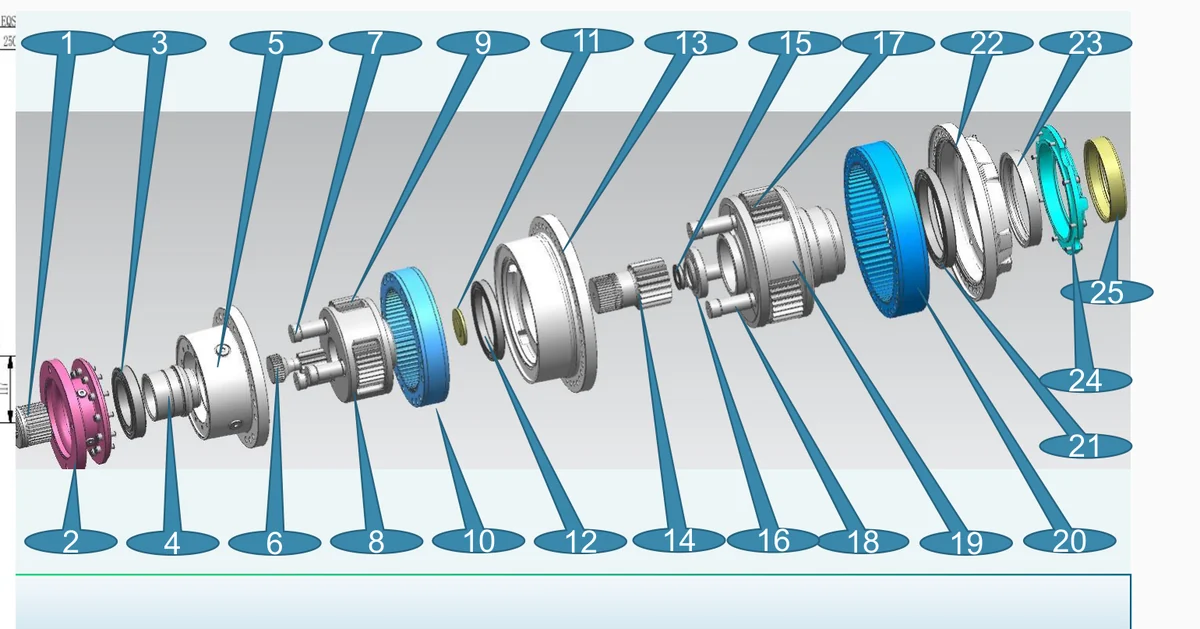

Documentation: 25-item exploded view and parts schedule (no illustrated parts list).

Applications

• High torque rotary head
• Built to order
• Special duty adaptation
• Supply to machine builders

Order spares straight from the exploded view: each callout number matches one line in the parts list, which shows an outline and part number for every item. Tell us the callout number and we will confirm the part.
