DRILLING TOOLS · ROTARY DRILLING TOOLS
Clam drilling bucket, rock
Split-body (clam) bucket for rock: cemented gravel, boulders and moderately weathered rock.

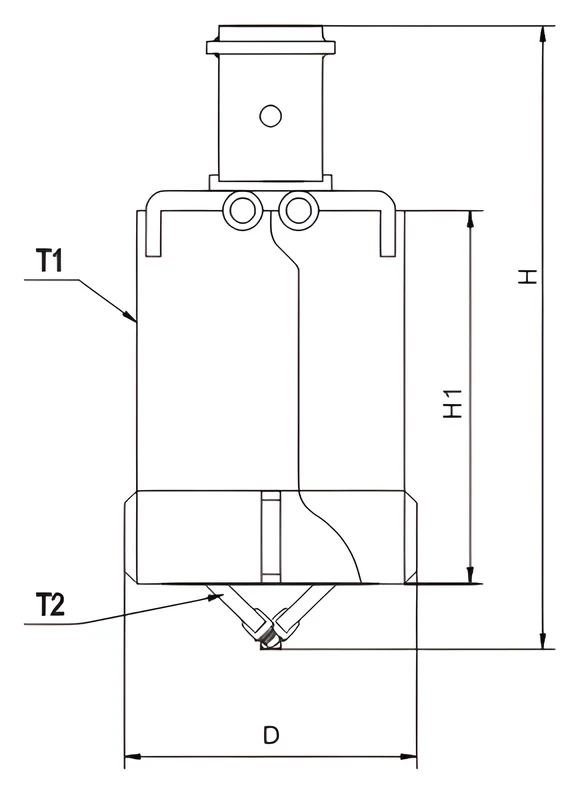

| DiameterD · mm | Body diameterD1 · mm | Overall heightH · mm | Body heightH1 · mm | Body wall thicknessT1 · mm | Tooth plate thicknessT2 · mm | Bullet teethpcs |
|---|---|---|---|---|---|---|
| Φ600 | 520 | 2000 | 1200 | 25/40 | 50 | 8 |
| Φ800 | 680 | 2000 | 1200 | 30/40 | 50 | 10 |
| Φ1000 | 880 | 2000 | 1200 | 30/40 | 50 | 12 |
| Φ1200 | 1050 | 2000 | 1200 | 30/40 | 50 | 15 |
| Φ1500 | 1360 | 2000 | 1200 | 30/40 | 50 | 22 |
5 catalogue sizes from Φ600 to Φ1500 mm, each with body diameter, overall height and body height. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
The rock version of the clam bucket. The body opens in two halves at the surface to discharge cobbles and rock fragments that would jam a bottom door.
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
