DRILLING TOOLS · ROTARY DRILLING TOOLS
Clam drilling bucket, soil
Split-body (clam) bucket that opens in two halves to release sticky spoil, for soil, mudstone, sandstone and sticky clay.

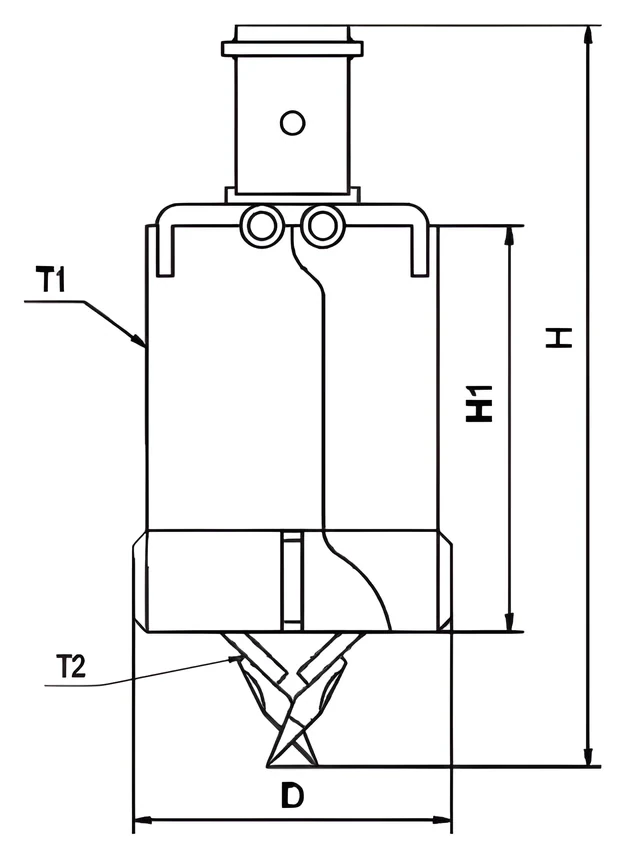

| DiameterD · mm | Body diameterD1 · mm | Overall heightH · mm | Body heightH1 · mm | Body wall thicknessT1 · mm | Tooth plate thicknessT2 · mm | Flat teethpcs |
|---|---|---|---|---|---|---|
| Φ600 | 540 | 2000 | 1200 | 25/40 | 50 | 4 |
| Φ800 | 700 | 2000 | 1200 | 30/40 | 50 | 6 |
| Φ1000 | 850 | 2000 | 1200 | 30/40 | 50 | 7 |
| Φ1200 | 1100 | 2000 | 1200 | 30/40 | 50 | 9 |
| Φ1500 | 1400 | 2000 | 1200 | 30/40 | 50 | 10 |
5 catalogue sizes from Φ600 to Φ1500 mm, each with body diameter, overall height and body height. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
Instead of discharging through a bottom door, the body itself opens, so clay that would cling to a closed barrel drops out cleanly at the surface.
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
