Two-wing belling bit, soil
Two-wing belling bit used for coal-mine ventilation shafts. KD600–KD2000, 7 catalogue sizes.
| Size | DiameterD · mm | DiameterD1 · mm | Height, openedH1 · mm |
|---|---|---|---|
| KD600 | 560 | 1200 | 1200 |
| KD800 | 760 | 1600 | 1550 |
| KD1000 | 960 | 2000 | 1900 |
| KD1200 | 1160 | 2400 | 2250 |
| KD1500 | 1460 | 3000 | 2900 |
| KD1800 | 1760 | 3600 | 3500 |
| KD2000 | 1960 | 4000 | 3800 |
7 catalogue sizes from KD600 to KD2000. Catalogue values; dimensions in mm. Other sizes on request.
Overview

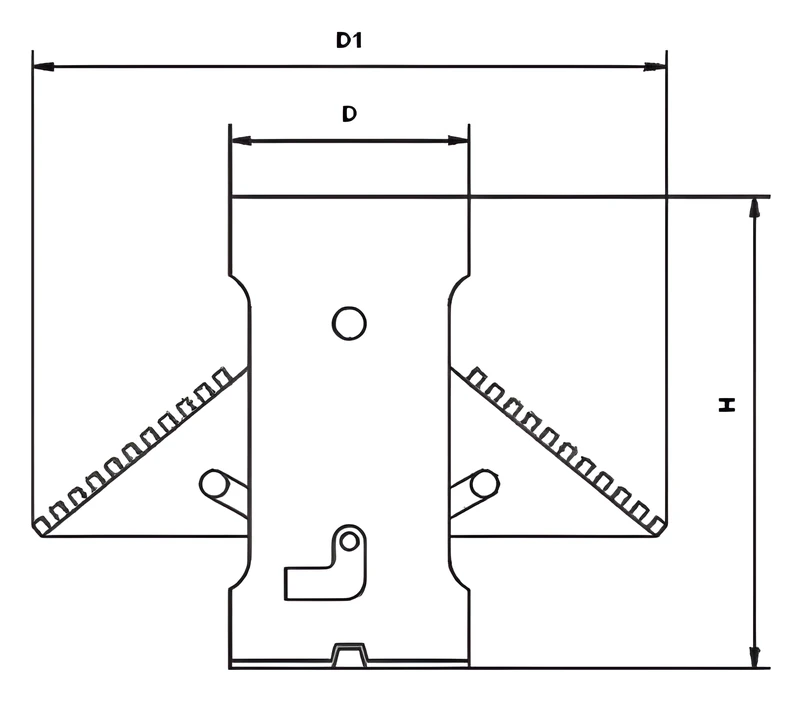

A cylindrical body with two hinged, toothed wings. The bit is lowered closed at body diameter D, then the wings open to cut out the enlarged section shown as D1 in the drawing.
The catalogue lists this design for coal-mine ventilation shafts. Its table gives body diameter D, diameter D1 and opened height H1 for each size, from KD600 (560 / 1200 / 1200 mm) to KD2000 (1960 / 4000 / 3800 mm).
Applications
How to order
To order, give us the hole diameter, the enlarged diameter you need, the depth and your rig model with its Kelly connection. We reply by email within one business day.
