DRILLING TOOLS · BELLING BITS
Two-wing belling bit, rock
Two-wing belling bit for bells in soil and moderately weathered rock. KD600–KD2000, 7 catalogue sizes.
| Size | DiameterD · mm | Reamed diameterD1 · mm | Height, closedH1 · mm | Height, openedH2 · mm |
|---|---|---|---|---|
| KD600 | 560 | 1200 | 1900 | 1550 |
| KD800 | 760 | 1600 | 2160 | 1700 |
| KD1000 | 960 | 2000 | 2650 | 1950 |
| KD1200 | 1160 | 2400 | 3050 | 2050 |
| KD1500 | 1460 | 3000 | 3600 | 2600 |
| KD1800 | 1760 | 3600 | 3900 | 2650 |
| KD2000 | 1960 | 4000 | 4200 | 2850 |
7 catalogue sizes from KD600 to KD2000. Catalogue values; dimensions in mm. Other sizes on request.
Overview

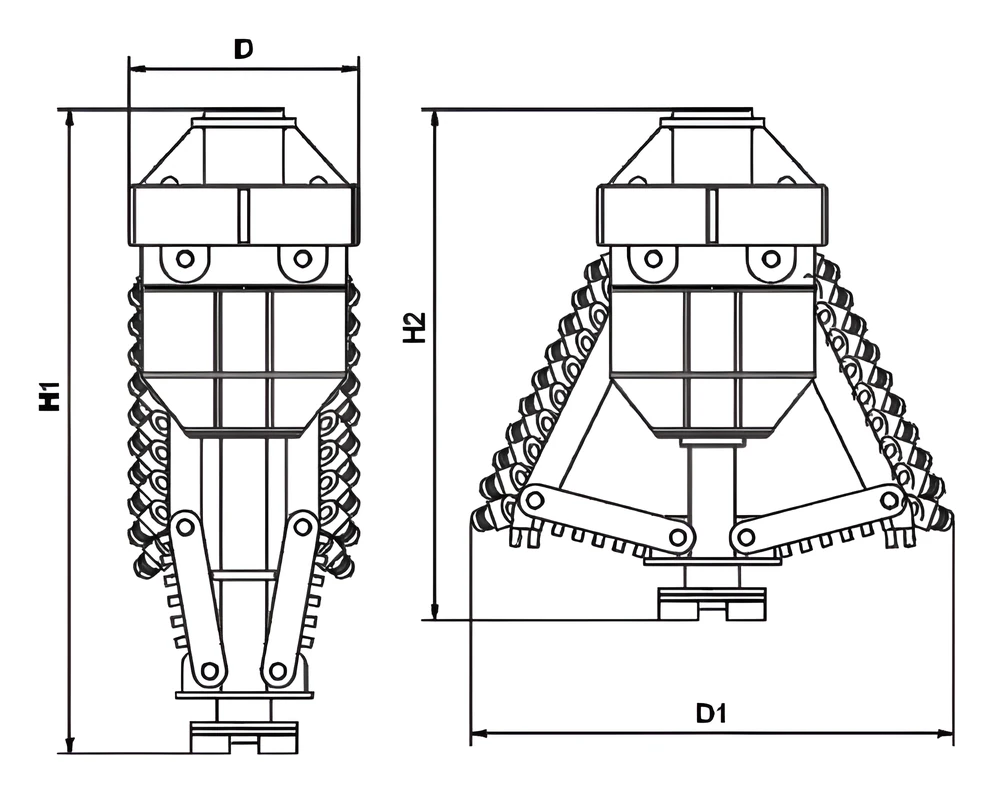

The bit goes down the pile shaft closed, at body diameter D. Once it reaches the toe, its two toothed wings swing out to cut the bell to the reamed diameter D1, then fold back so the bit can be lifted out. The drawing shows the bit closed (height H1) and opened (height H2).
Across the range the bell is roughly twice the shaft size: KD600 runs in a 560 mm body and reams to 1200 mm, while KD2000 runs at 1960 mm and reams to 4000 mm.
Applications
How to order
To order, give us the pile (shaft) diameter, the bell diameter you need, the ground at the toe and your rig model with its Kelly connection. We reply by email within one business day.
