A6VE series
A6VE series

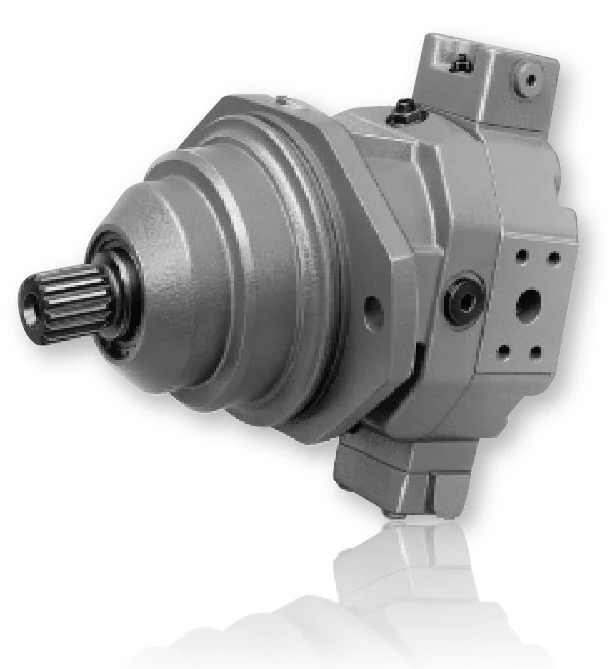

Bent-axis variable motor with an integrated planetary gearbox, mounted inside the track or wheel. Travel drive for rigs and excavators, with no external gearbox or cardan shaft.
Features
- Variable plug-in motor with swash-plate type axial tapered-piston rotor group, for hydrostatic drives in open and closed circuits
- Integrated into mechanical gearboxes thanks to the recessed mounting flange at the centre of the housing (a very space-saving design)
- Easy to install — simply plug into the mechanical gearbox (no configuration instructions to follow)
- Test unit ready for installation
- Especially for mobile machinery applications
- Displacement is infinitely variable between Vg max and Vg min = 0
- The wide control range lets the motor meet high speed and high torque requirements
- Output speed depends on pump flow and motor displacement
- Output torque increases with the differential pressure between high and low pressure sides and with displacement
Technical data
| Size | 28 | 55 | 80 | 107 | 160 | 250 |
|---|---|---|---|---|---|---|
| Geometric displacement · Vg maxcm³ | 28.1 | 54.8 | 80 | 107 | 160 | 250 |
| Geometric displacement · Vg mincm³ | 0 | 0 | 0 | 0 | 0 | 0 |
| Geometric displacement · Vg xcm³ | 18 | 35 | 51 | 68 | 61 | 188 |
| Max. speed · at Vg maxn nom · rpm | 5550 | 4450 | 3900 | 3550 | 3100 | 2700 |
| Max. speed · Vg < Vg xn max · rpm | 8750 | 7000 | 6150 | 5600 | 4900 | 3600 |
| Max. speed · Vg = 0n max · rpm | 10450 | 8350 | 7350 | 6300 | 5500 | 3600 |
| Input flow · n nom and Vg maxqV max · l/min | 156 | 244 | 312 | 380 | 496 | 675 |
| Torque · Vg max, Δp = 400 barT · Nm | 179 | 349 | 509 | 681 | 1019 | – |
| Torque · Vg max, Δp = 350 barT · Nm | 157 | 305 | 446 | 596 | 891 | 1391 |
| Torsional stiffness · C minkNm/rad | 6 | 10 | 16 | 21 | 35 | 60 |
| Torsional stiffness · C maxkNm/rad | 18 | 32 | 48 | 65 | 105 | 181 |
| Moment of inertia of rotating groupJ · kgm² | 0.0014 | 0.0042 | 0.008 | 0.0127 | 0.0253 | 0.061 |
| Max. angular accelerationα · rad/s² | 47000 | 31500 | 24000 | 19000 | 11000 | 10000 |
| Housing volumeV · L | 0.5 | 0.75 | 1.2 | 1.5 | 2.4 | 3.0 |
| Weight · port plate 02 / 37 / 38m · kg | 16 | 26 | 34 | 47 | 64 | 90 |
| Weight · port plate 22m · kg | – | 35 | 43 | 53 | 72 | – |
Data table: theoretical values, excluding coefficients and tolerances; approximate. ① Geometric displacement. ② With observance of maximum permissible input flow. ③ Input flow = geometric displacement × speed. ④ Torque without efficiency losses.
