Single-cut soil auger, straight flight
Single-start soil auger with a straight flight, for silt, clay, sand and loose gravel.

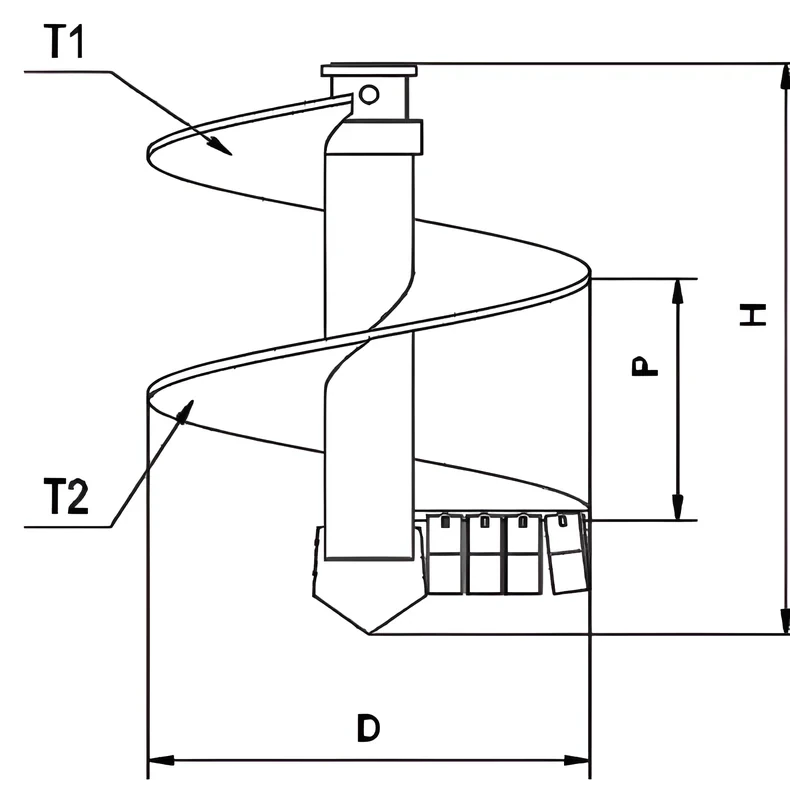

| DiameterD · mm | Overall heightH · mm | PitchP · mm | Flight thicknessT1 · mm | Flight thicknessT2 · mm | Flat teethpcs |
|---|---|---|---|---|---|
| Φ600 | 1850 | 400 | 20 | 30 | 2 |
| Φ800 | 1850 | 400 | 20 | 30 | 2 |
| Φ1000 | 1850 | 500 | 20 | 30 | 3 |
| Φ1200 | 1950 | 500 | 20 | 30 | 4 |
| Φ1500 | 1950 | 500 | 30 | 40 | 5 |
| Φ1800 | 2550 | 600 | 30 | 40 | 7 |
| Φ2000 | 2550 | 600 | 30 | 40 | 8 |
| Φ2200 | 2550 | 600 | 30 | 40 | 9 |
| Φ2500 | 2550 | 600 | 30 | 40 | 11 |
9 catalogue sizes from Φ600 to Φ2500 mm, each with overall height, pitch and flight thickness. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
One cutting edge and a straight flight give a simple, light auger for soft ground; spoil rides up the flight and is spun off at the surface.
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
