Single-bottom drilling bucket, flat teeth
Single-bottom drilling bucket with two openings and flat teeth, for clay and sticky clay.

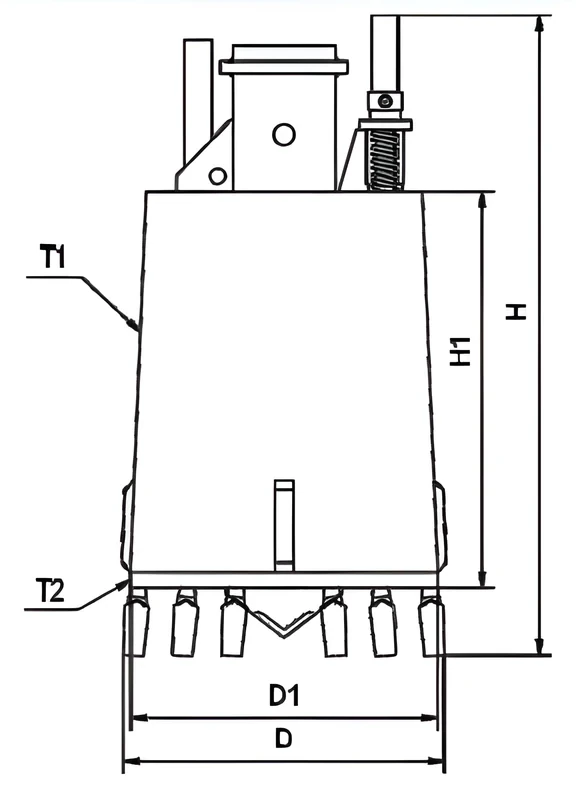

| DiameterD · mm | Body diameterD1 · mm | Overall heightH · mm | Body heightH1 · mm | Body wall thicknessT1 · mm | Cutting plate thicknessT3 · mm | Flat teethpcs |
|---|---|---|---|---|---|---|
| Φ600 | 540 | 2000 | 1200 | 14 | 50 | 4 |
| Φ800 | 700 | 2000 | 1200 | 14 | 50 | 4 |
| Φ1000 | 900 | 2000 | 1200 | 16 | 50 | 6 |
| Φ1200 | 1100 | 2000 | 1200 | 16 | 50 | 7 |
| Φ1500 | 1400 | 2000 | 1200 | 16 | 50 | 9 |
| Φ1800 | 1700 | 1800 | 1000 | 20 | 50 | 11 |
| Φ2000 | 1900 | 1600 | 800 | 20 | 50 | 13 |
| Φ2200 | 2100 | 1600 | 800 | 20 | 50 | 15 |
| Φ2500 | 2400 | 1500 | 700 | 20 | 50 | 18 |
| Φ3000 | 2900 | 1500 | 700 | 20 | 50 | 21 |
10 catalogue sizes from Φ600 to Φ3000 mm, each with body diameter, overall height and body height. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
A single bottom plate keeps the bucket simple and easy to discharge in cohesive ground; two openings fill it from both sides.
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
