DRILLING TOOLS · ROTARY DRILLING TOOLS
Ring-cutting single-cut rock drilling bucket
Single-opening rock bucket with a core-barrel cutting ring, for soil and moderately weathered rock.

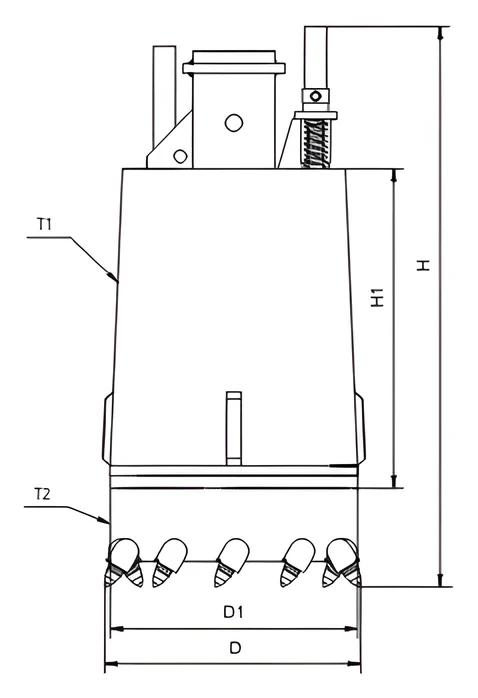

| DiameterD · mm | Body diameterD1 · mm | Overall heightH · mm | Body heightH1 · mm | Body wall thicknessT1 · mm | Lower wall thicknessT2 · mm | Bullet teethpcs |
|---|---|---|---|---|---|---|
| Φ600 | 540 | 2350 | 1200 | 14 | 40 | 8 |
| Φ800 | 700 | 2350 | 1200 | 14 | 40 | 8 |
| Φ1000 | 900 | 2350 | 1200 | 16 | 40 | 12 |
| Φ1200 | 1100 | 2350 | 1200 | 16 | 40 | 12 |
| Φ1500 | 1400 | 2350 | 1200 | 16 | 40 | 16 |
| Φ1800 | 1700 | 2150 | 1000 | 20 | 40 | 20 |
| Φ2000 | 1900 | 1950 | 800 | 20 | 40 | 24 |
| Φ2200 | 2100 | 1950 | 800 | 20 | 40 | 24 |
| Φ2500 | 2400 | 1850 | 700 | 20 | 40 | 28 |
| Φ3000 | 2900 | 1850 | 700 | 20 | 40 | 32 |
10 catalogue sizes from Φ600 to Φ3000 mm, each with body diameter, overall height and body height. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
The outer ring cuts the circumference like a core barrel while the single-opening bottom loads the spoil, so one tool cuts and cleans the hole.
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
