DRILLING TOOLS · ROTARY DRILLING TOOLS
Double-cut rock drilling bucket
Double-bottom, twin-opening drilling bucket with bullet teeth, for dense sand, cemented gravel and weathered rock.

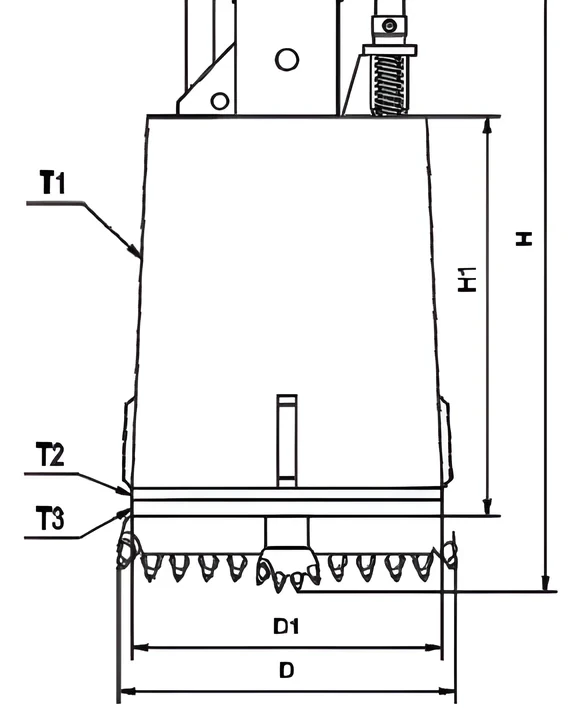

| DiameterD · mm | Body diameterD1 · mm | Overall heightH · mm | Body heightH1 · mm | Body wall thicknessT1 · mm | Base plate thicknessT2 · mm | Cutting plate thicknessT3 · mm | Bullet teethpcs |
|---|---|---|---|---|---|---|---|
| Φ600 | 540 | 2000 | 1200 | 14 | 40 | 50 | 12 |
| Φ800 | 700 | 2000 | 1200 | 14 | 40 | 50 | 14 |
| Φ1000 | 900 | 2000 | 1200 | 16 | 40 | 50 | 20 |
| Φ1200 | 1100 | 2000 | 1200 | 16 | 40 | 50 | 21 |
| Φ1500 | 1400 | 2000 | 1200 | 16 | 40 | 50 | 24 |
| Φ1800 | 1700 | 1800 | 1000 | 20 | 50 | 50 | 28 |
| Φ2000 | 1900 | 1600 | 800 | 20 | 50 | 50 | 32 |
| Φ2200 | 2100 | 1600 | 800 | 20 | 50 | 50 | 34 |
| Φ2500 | 2400 | 1500 | 700 | 20 | 50 | 50 | 38 |
| Φ3000 | 2900 | 1500 | 700 | 20 | 50 | 50 | 44 |
10 catalogue sizes from Φ600 to Φ3000 mm, each with body diameter, overall height and body height. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
Bullet teeth on both openings cut harder ground than flat teeth; the double bottom closes the inlets so spoil is retained while the bucket is lifted.
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
