DRILLING TOOLS · ROTARY DRILLING TOOLS
Core barrel with bullet teeth
Core barrel with bullet teeth on the cutting ring: it cuts an annular groove and lifts out the rock core.

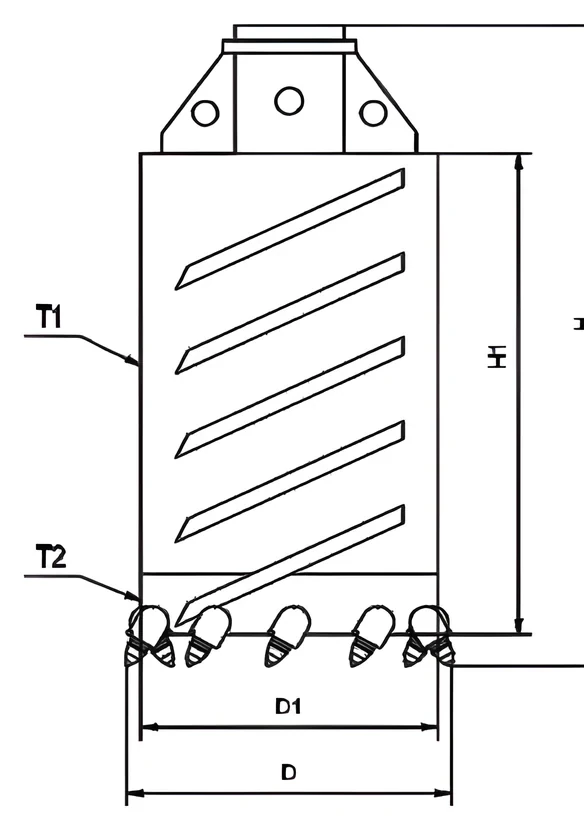

| DiameterD · mm | Body diameterD1 · mm | Overall heightH · mm | Body heightH1 · mm | Upper wall thicknessT1 · mm | Lower wall thicknessT2 · mm | Bullet teethpcs |
|---|---|---|---|---|---|---|
| Φ600 | 520 | 1620 | 1200 | 16 | 40 | 8 |
| Φ800 | 720 | 1620 | 1200 | 16 | 40 | 8 |
| Φ1000 | 920 | 1620 | 1200 | 16 | 40 | 12 |
| Φ1200 | 1120 | 1620 | 1200 | 16 | 40 | 12 |
| Φ1500 | 1420 | 1620 | 1200 | 16 | 40 | 16 |
| Φ1800 | 1720 | 1620 | 1200 | 20 | 40 | 20 |
| Φ2000 | 1920 | 1620 | 1200 | 20 | 40 | 24 |
| Φ2200 | 2120 | 1620 | 1200 | 20 | 40 | 24 |
| Φ2500 | 2420 | 1620 | 1200 | 20 | 40 | 28 |
| Φ3000 | 2920 | 1620 | 1200 | 20 | 40 | 32 |
10 catalogue sizes from Φ600 to Φ3000 mm, each with body diameter, overall height and body height. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
Cutting only a ring rather than the full face reduces the rock volume to be broken. Once the groove is deep enough, the core is snapped off and removed with the barrel or a follow-up tool.
Bullet teeth (picks) sit in holders on the barrel rim and can be replaced individually as they wear.
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
