Cone-bottom bucket
Cone-bottom bucket, Φ600 to Φ1500 mm, for cemented gravel, boulders and moderately weathered rock.

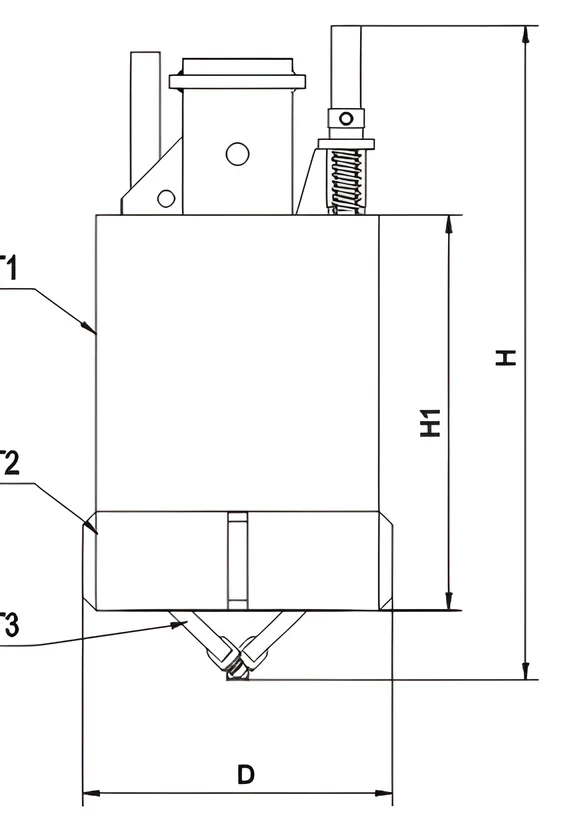

| DiameterD · mm | Body diameterD1 · mm | Overall heightH · mm | Body heightH1 · mm | Body wall thicknessT1 · mm | Lower wall thicknessT2 · mm | Tooth plate thicknessT3 · mm | Bullet teethpcs |
|---|---|---|---|---|---|---|---|
| Φ600 | 540 | 2000 | 1200 | 16 | 30 | 50 | 8 |
| Φ800 | 700 | 2000 | 1200 | 16 | 30 | 50 | 10 |
| Φ1000 | 900 | 2000 | 1200 | 16 | 30 | 50 | 12 |
| Φ1200 | 1100 | 2000 | 1200 | 16 | 30 | 50 | 15 |
| Φ1500 | 1400 | 2000 | 1200 | 16 | 40 | 50 | 22 |
5 catalogue sizes from Φ600 to Φ1500 mm, each with body diameter, overall height and body height. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
A compact bucket with a conical base for smaller pile diameters. The cone leads the cut and centres the tool in mixed ground with cobbles and rock.
For pile diameters above Φ1500 mm, see the drilling bucket with cone bottom (Φ1000 to Φ3000 mm).
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
