Cleaning bucket
Bucket for the last pass before concreting: it removes the sediment that settles at the bottom of the pile.

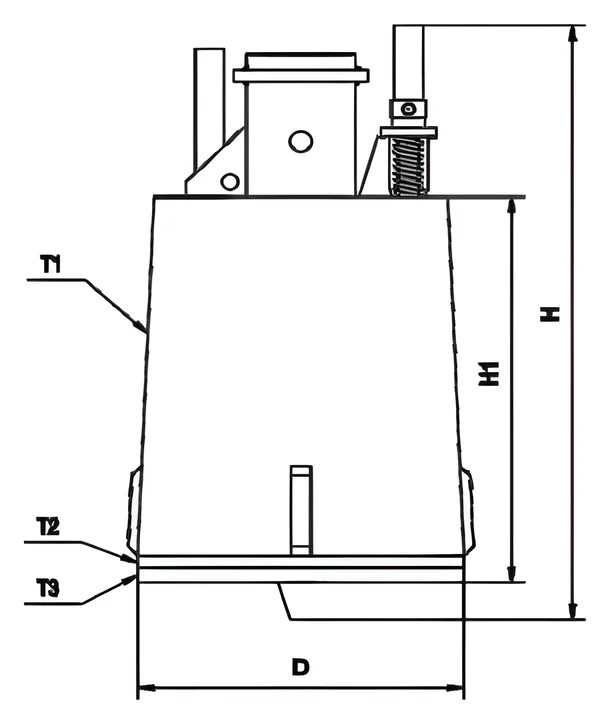

| DiameterD · mm | Body diameterD1 · mm | Overall heightH · mm | Body heightH1 · mm | Body wall thicknessT1 · mm | Base plate thicknessT2 · mm | Cutting plate thicknessT3 · mm |
|---|---|---|---|---|---|---|
| Φ600 | 540 | 2000 | 1200 | 14 | 40 | 50 |
| Φ800 | 700 | 2000 | 1200 | 14 | 40 | 50 |
| Φ1000 | 900 | 2000 | 1200 | 16 | 40 | 50 |
| Φ1200 | 1100 | 2000 | 1200 | 16 | 40 | 50 |
| Φ1500 | 1400 | 2000 | 1200 | 16 | 40 | 50 |
| Φ1800 | 1700 | 1800 | 1000 | 20 | 50 | 50 |
| Φ2000 | 1900 | 1600 | 800 | 20 | 50 | 50 |
| Φ2200 | 2100 | 1600 | 800 | 20 | 50 | 50 |
| Φ2500 | 2400 | 1500 | 700 | 20 | 50 | 50 |
| Φ3000 | 2900 | 1500 | 700 | 20 | 50 | 50 |
10 catalogue sizes from Φ600 to Φ3000 mm, each with body diameter, overall height and body height. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
After the hole reaches depth, cuttings settle out of the drilling fluid. The cleaning bucket collects this sediment so the pile base rests on firm ground.
Applications
How to order
To order, give us the diameter from the table, your rig make and model, and the Kelly bar connection. We reply by email within one business day.
