Mechanical rope grab, type B
Twin-rope mechanical diaphragm wall grab for crawler cranes, with a lighter frame than type A.
| Wall widthmm | 600 | 800 | 1000 | 1200 | 1500 |
|---|---|---|---|---|---|
| Pulleyspcs | 5 | 5 | 5 | 5 | 5 |
| Closing forcekN | 1100 | 1100 | 1100 | 1100 | 1100 |
| Closing / opening times | 8/5 | 8/5 | 8/5 | 8/5 | 8/5 |
| Open shell width, max.mm | 2800 | 2800 | 2800 | 2800 | 2800 |
| CapacityL | 850 | 1200 | 1500 | 1900 | 2300 |
| Weight, light versionkg | 11000 | 12000 | 13000 | 14000 | 16000 |
| Weight, heavy versionkg | 16500 | 17000 | 18500 | 20000 | 22500 |

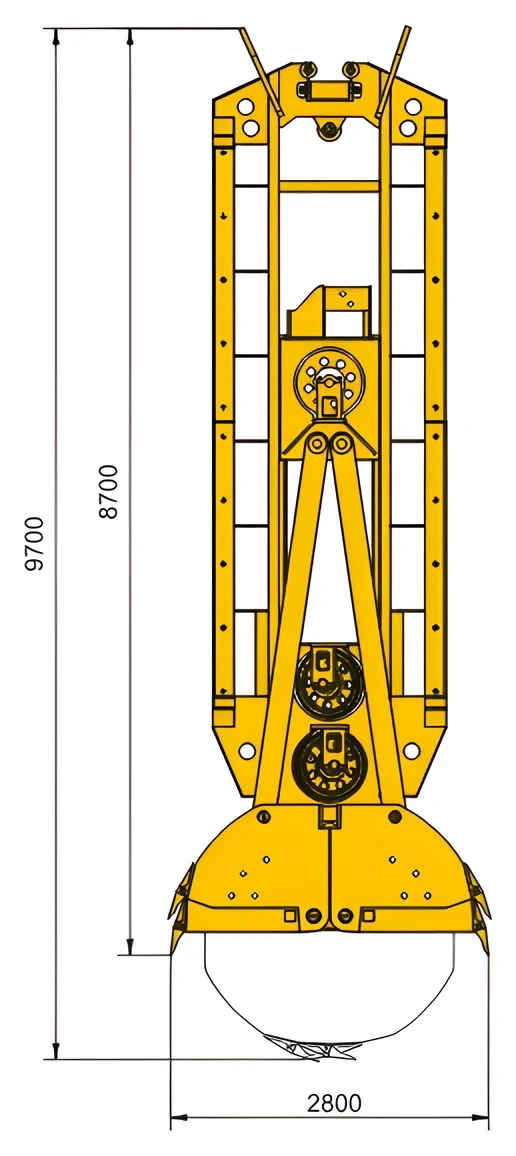

Five wall widths from 600 to 1500 mm, each with pulley count, cycle time, opening width, capacity and weight in light and heavy versions. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
A mechanical diaphragm wall grab for use with a crawler crane. Two wire ropes work it: one hoists and lowers the grab, the other opens and closes it. It digs by impact under its own weight, which suits severe, complex ground and deeper walls.
Trench accuracy is slightly lower than with a hydraulic grab. It is particularly suited to contractors without a dedicated diaphragm wall base machine.
Type B has a lighter frame than type A.
Applications
How to order
To order, give us the wall width, light or heavy version, and the base machine or crawler crane. We reply by email within one business day.
