Triple-axis mixing CFA rod
Three parallel auger rods for triple-axis soil-mixing walls.

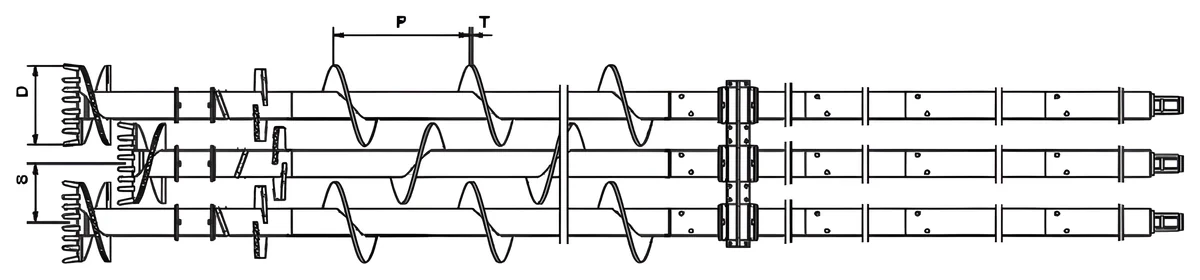

| Size | DiameterD · mm | PitchP · mm | Flight thicknessT · mm | Centre spacingS · mm |
|---|---|---|---|---|
| SZ600 | 580 | 1000 | 30 | 500 |
| SZ700 | 680 | 1150 | 30 | 500 |
| SZ800 | 780 | 1300 | 30 | 600 |
| SZ900 | 880 | 1400 | 30 | 650 |
| SZ1000 | 980 | 1550 | 30 | 700 |
5 sizes, SZ600 to SZ1000 (diameter 580 to 980 mm), each with pitch, flight thickness and centre spacing between the rods. Catalogue values; dimensions in mm unless stated. Other sizes on request.
Overview
Three augers turn side by side, mixing cement slurry into the soil to form overlapping columns for cut-off and retaining walls.
The centre spacing in the table sets the overlap between columns.
Applications
How to order
To order, give us the auger diameter, the rod length and the drive-head connection on your rig. We reply by email within one business day.
